Potential Field Determination and high precise Oscillators

Potential Field Determination and high precise Oscillators

Led by:  Prof. Dr.-Ing. habil. Jürgen Müller
Team:  Dr.-Ing. habil. Enrico Mai
Year:  2011
Funding:  QUEST (Quantum Engineering and Space Time Research)
Is Finished:  yes


Quantum physics and the theory of relativity play an increasingly important  role in geodesy. But nowadays, classical geodesy in the most part still relies on Newtonian mechanics and its conceptions of space and time. With the advent of the era of artificial Earth satellites and its utilization in the framework of physical geodesy, relativistic effects no longer could be ignored. Furthermore, novel measurement techniques for the determination of time and frequency using atomic clocks are based on quantum-physical processes. The Earth system's metric field will become a major subject of investigation in future geodesy.

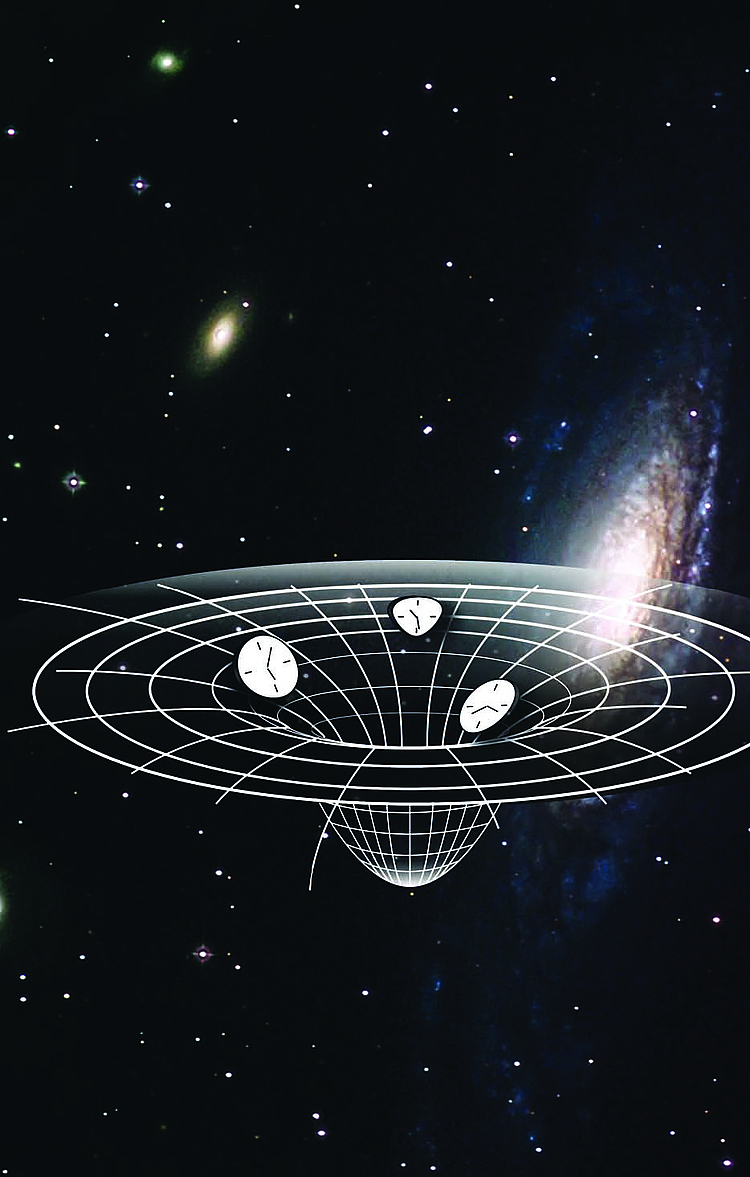

Fig. 1: Clock readings depend on position within a gravitational potential, Source: PTB-Mitteilungen, Special Issue, Vol. 119 (2009) No. 2.



Fig. 2: Heart of an optical clock developed at the PTB, Source: PTB-Mitteilungen, Special Issue, Vol. 119 (2009) No. 2.

The potential uses of available quantum sensors for geodetic applications shall be investigated. Within the domain of physical geodesy, the utilization  of high-precise time and frequency normals (optical atomic clocks, frequency  combs) for gravity field determination in combination with classical gravity field observables is of special interest. Being part of the QUEST cluster of  excellence, the relativistic geodesy (potential measurements via atomic clocks)  shall be advanced and promoted. As an example, the global unification of national  height systems would be a worthwile application.



The determination equation for the comparison of atomic clock readings depends on the state of motion of the involved clocks and its respective positions  within a gravity potential. In return, these quantities could be determined by time and frequency comparisons between atomic clocks that are distributed in a network. For instance, geoid height determinations on the cm-level require (optical) atomic clocks with an accuracy of about 10^(-18). The development of specific observation methods or measurement techniques is in progress.

Fig. 3: Deviations of national height systems from the universal European leveling system, Source: BKG Frankfurt bzw. PTB-Mitteilungen, Special Issue, Vol. 119 (2009) No. 2.
Fig. 4: Comparison of remote frequency standards at LUH and PTB by means of optical fiber, Source: PTB-Mitteilungen, Special Issue, Vol. 119 (2009) No. 2
